Kinugawa Turbocharger 3″ Anti Surge TD06H w/ 60-1 & 10cm T3 V-Band Internal Gate

Product Info

Item Name

Kinugawa 3 Anti Surge TD06H Turbocharger with Garrett 60-1 Compressor Wheel and 10cm T3 V-band Internal Gate Turbine Housing

Item No.

Application

– Universal Type

– 2000~3000cc

Wheel Spec.

– Comp. wheel: 60/76 mm (Garrett 60-1 Cast Wheel)

– Turbine wheel: 58.8 / 67.2 mm (TD06H / 11 Blades high Flow Inconel Wheel)

Compressor Housing

Turbine Housing

– A/R 60

– Compressor Inlet : 80.5mm / 3.25

– Compressor Outlet : 51mm / 2

– 10cm / A/R .73

– T3 Inlet Flange

– Internal Gate

Bearing System

Journal Bearing / Kamak Performance Thrust Bearing Kit

Cooling System

Oil & Water cooled system

Max HP

Boost Limit

Suggested Limit

-300~450HP

– 2.8 Bar(Based on Performance bearing kit with larger thrust bearing )

– 1.5 bar / 22 Psi

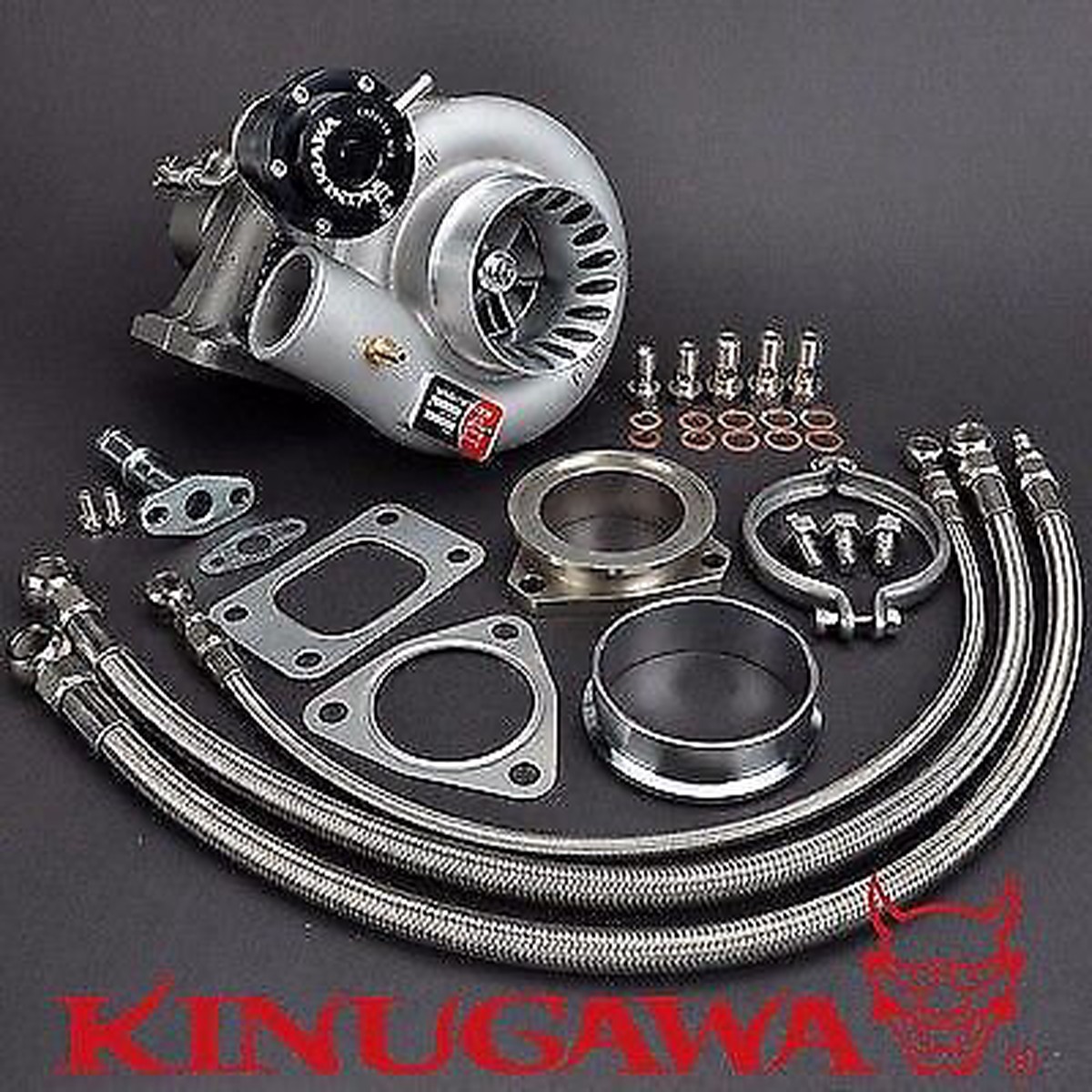

Kit includes

(Everything shown on picture included)

– 1.0 Bar installed

– 0.3bar, 0.5Bar, 0.8 Bar, 1 Bar, 1.2 Bar, 1.5 bar actuators are available,

please contact us if you need it.

Made by

Notes

Kinugawa Turbo

ONE YEAR WARRANTY
